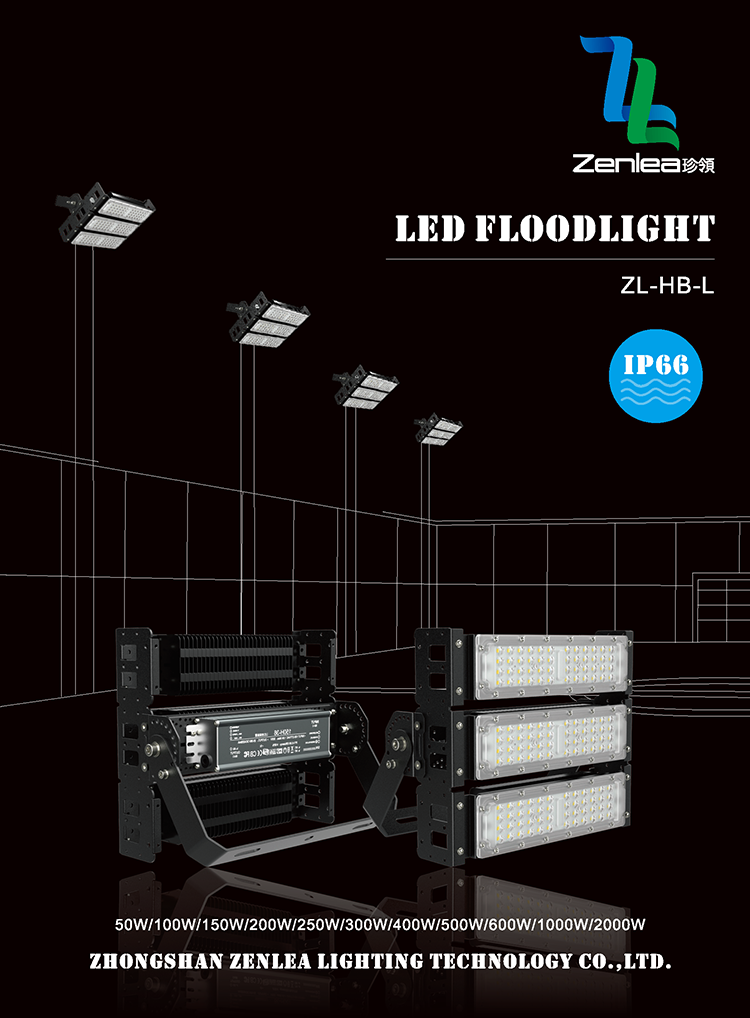

ZL-HB-L
Zhongshan ZENLEA Lighting Technology Co.,Ltd is one of the toppest ZL-HB-L in China.During these years of exporting , Zhongshan ZENLEA Lighting Technology Co.,Ltd now has rich experience in the worldwide markets
  • Product Selling Points
  • Product Details
  • Product Details
  • COMPANY PROFILE
  • Related Product

Product Selling Points

  • Fin-type heat sink

    Fin-type heat sink

    1
  • High luminous efficiency: 100 LM/W or 130 LM/W optional

    High luminous efficiency: 100 LM/W or 130 LM/W optional

    2

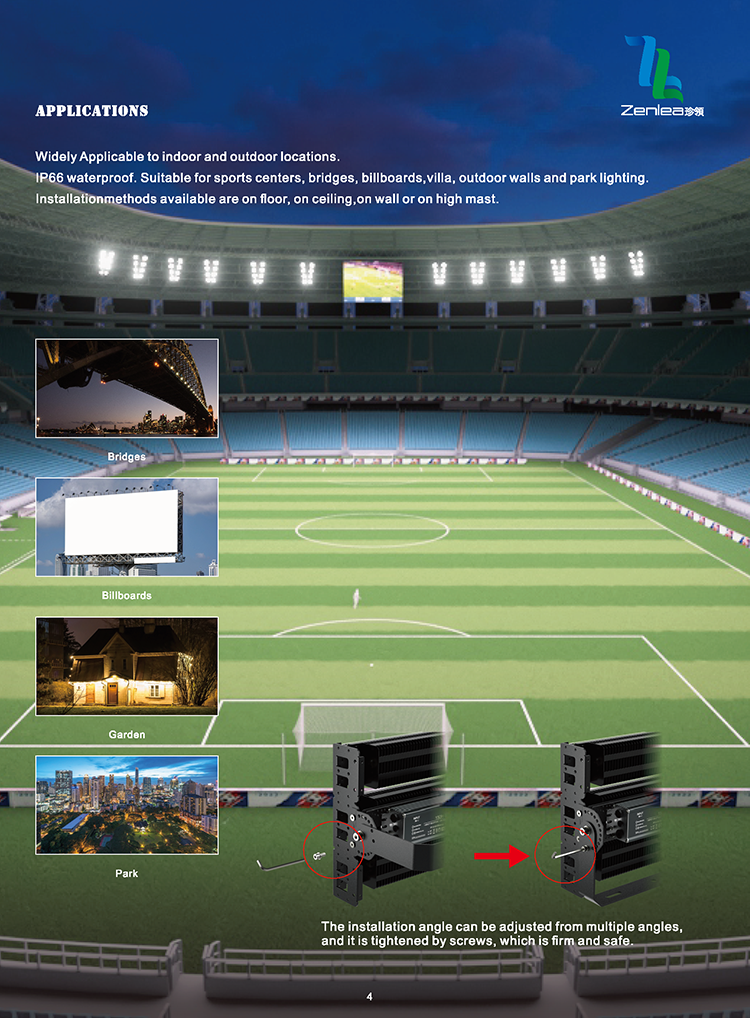

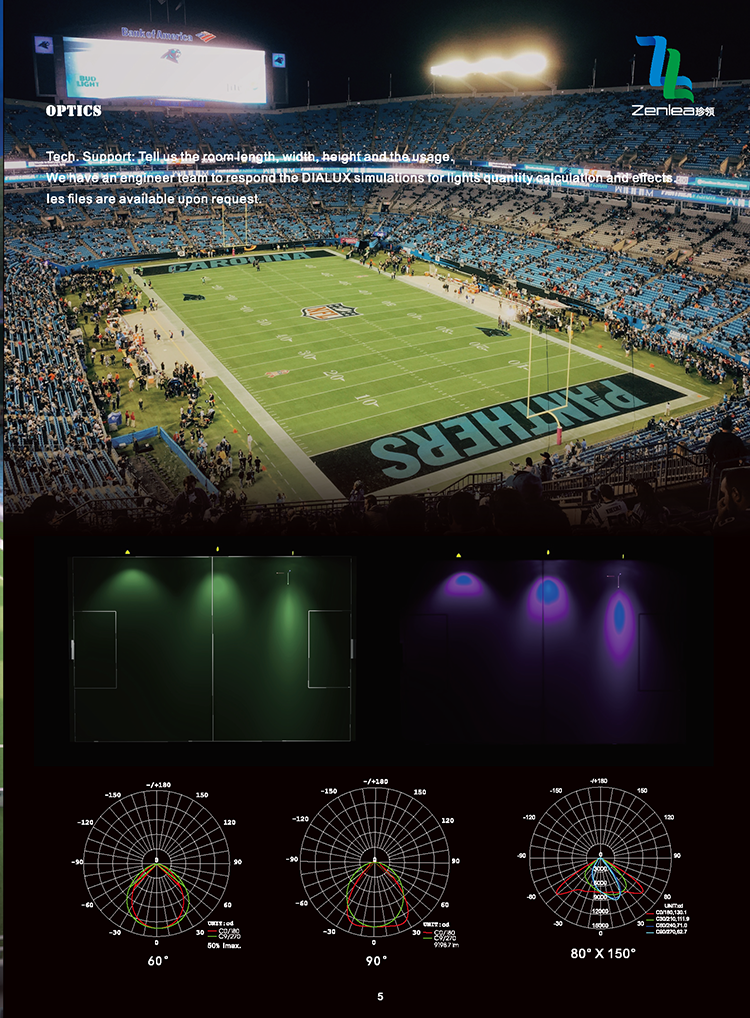

  • Different Optical Lens for suitable application

    Different Optical Lens for suitable application

    3
  • Different Optical Lens for suitable application

    Different Optical Lens for suitable application

    4
  • sprayed lamp body is more durable.

    sprayed lamp body is more durable.

    5
  • 1070 pure aluminum stamping process, better heat dissipation, lighter weight, and effectively extend lifespan

    1070 pure aluminum stamping process, better heat dissipation, lighter weight, and effectively extend lifespan

    6

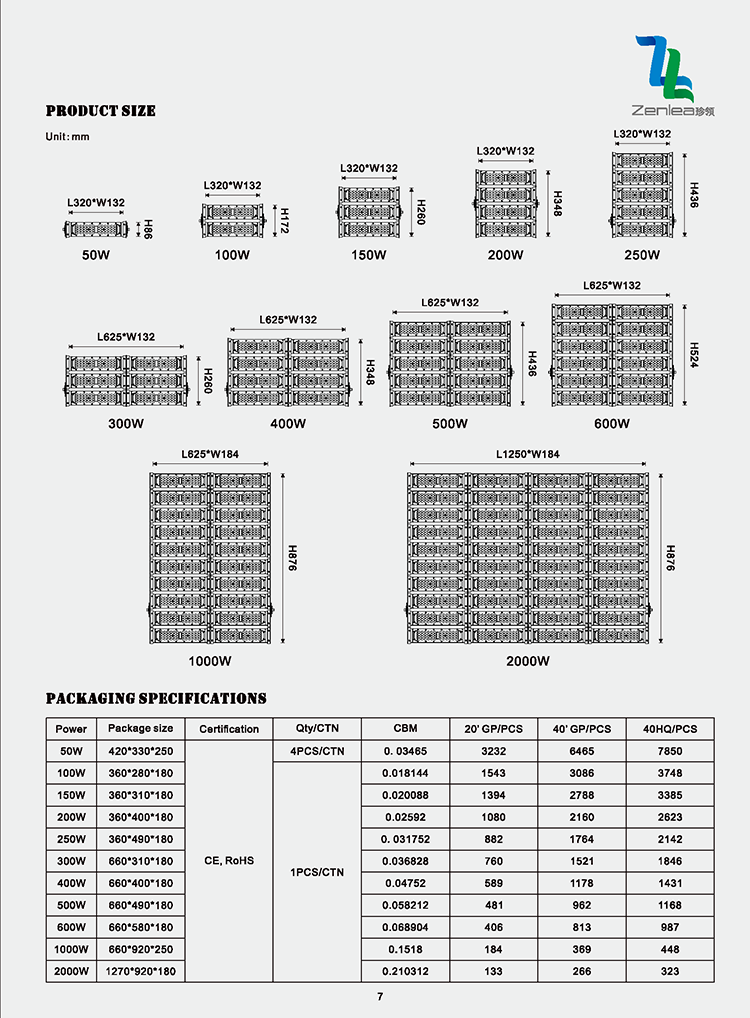

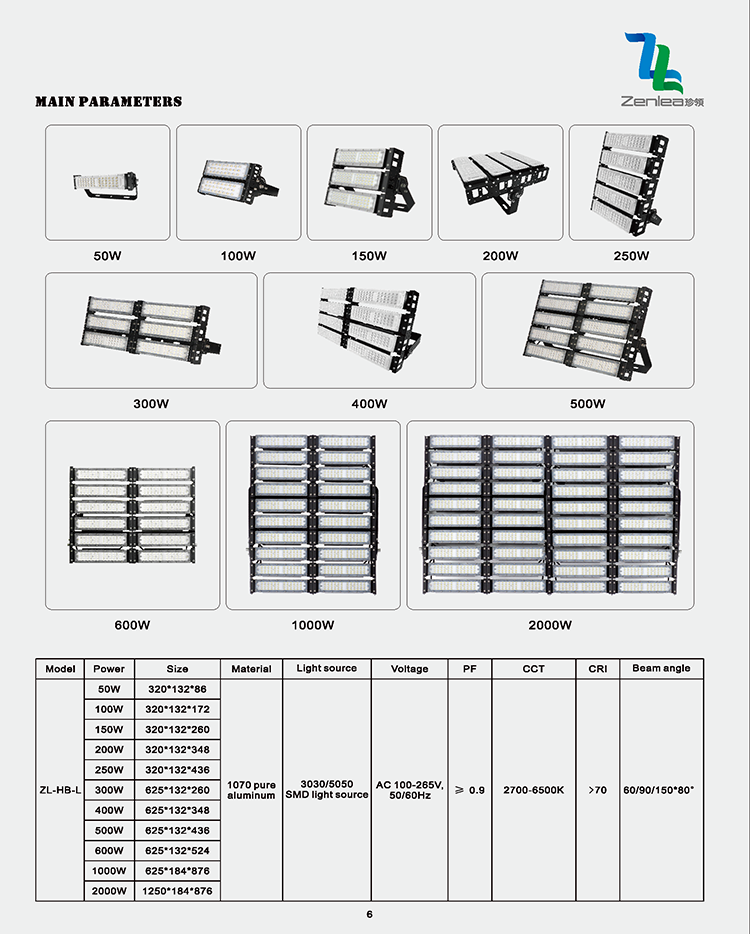

Light effect / finger display Wattage Lamp body size(mm) LED light source Lamp material Number of LED beads IP protection index
110lm/W70 50W 320*86*132 SMD3030 Die cast aluminum 48 IP65
110lm/W70 100W 320*172*132 SMD3030 Die cast aluminum 96 IP65
110lm/W70 150W 320*260*132 SMD3030 Die cast aluminum 144 IP65
110lm/W70 200W 320*348*132 SMD3030 Die cast aluminum 192 IP65
110lm/W70 250W 320*436*132 SMD3030 Die cast aluminum 240 IP65
110lm/W70 300W 625*260*132 SMD3030 Die cast aluminum 288 IP65
110lm/W70 400W 625*344*132 SMD3030 Die cast aluminum 384 IP65
110lm/W70 500W 625*436*132 SMD3030 Die cast aluminum 480 IP65
110lm/W70 600W 625*524*132 SMD3030 Die cast aluminum 576 IP65
110lm/W70 700W 625*612*184 SMD3030 Die cast aluminum 672 IP65
110lm/W70 800W 625*700*184 SMD3030 Die cast aluminum 768 IP65
110lm/W70 900W 625*788*184 SMD3030 Die cast aluminum 864 IP65
110lm/W70 1000W 647*876*184 SMD3030 Die cast aluminum 960 IP65
110lm/W70 2000W 289*974*184 SMD3030 Die cast aluminum 1920 IP65
Product Catalog
